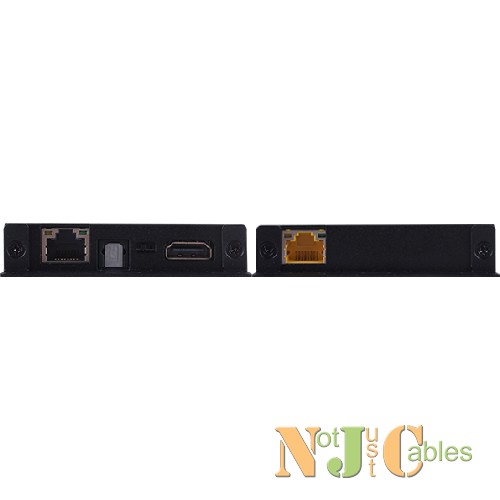

CYP HDBaseT 2.0 Transmitter Over Single Cat5e/6. HDMI, COAX RCA, Stereo RCA, 3.5mm stereo, USB, RJ45 and RS-232 inputs. PoE to power receiver. Bidirectional LAN & digital audio.

Features:

• Supports the HDBaseT 2.0 specification over a single Cat.6/7 cable up to 100m/328ft and Cat.5e cable up to 90m/295ft
• HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (Bi-directional IR/RS232 pass-through)
• Receiver (PD) is powered by 48V PoH from the transmitter (PSE)
• HDMI with 3D & 4K@60Hz (YUV 4:2:0) support, DVI 1.0 compatible
• HDCP 2.2 compliant
• 1× USB 2.0 Mini-B port (on the transmitter), 2× USB 2.0 Type A ports (on the receiver)
• Supports pass-through of HD audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
• Supports optical audio sampling rates up to 48kHz
• Supports external analogue and digital audio extension including support for ARC (Audio Return Channel)
• Supports RS232 baud rates from 110~115200bps
• Ultra-thin mechanical design
